Thought id share this with you.
Author Message
VIP Member
User avatar

Joined: Sun May 09, 2010 8:11 am
Posts: 1728
Location: Montreal
Country: Canada (ca)
Post Thought id share this with you.

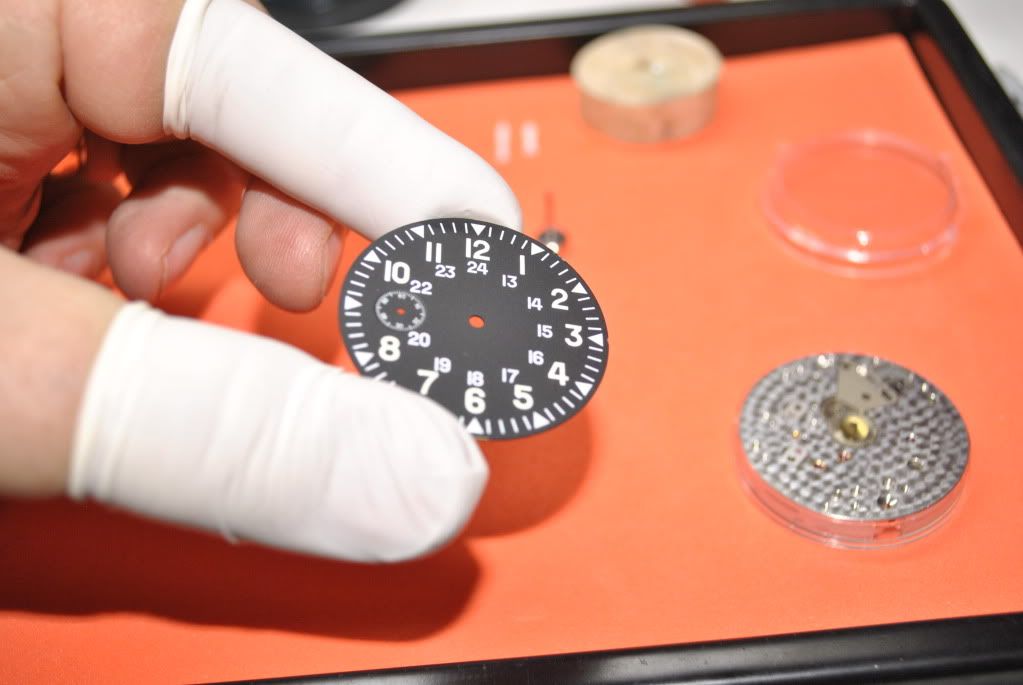

Just before leaving for Spain I put this together for my brother.

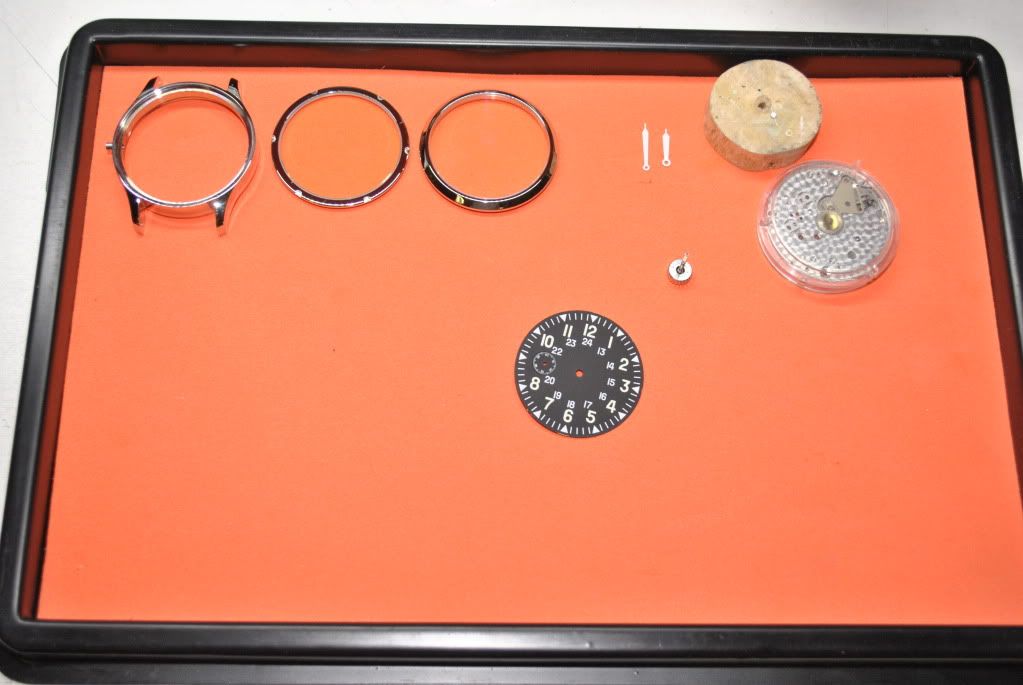

The case is from Kemmer and good for 5ATM it’s front loading and made for the Hamilton 921/917 Sapphire in front and in back 42,0 mm in diameter wc 10,7 mm high and takes a 22mm strap, finishing between lugs could be better but the rest is very good the bezel and case back threads are nice and tight and feel very good, one thing I did notice is the supplied hands do not fit the 921 and would have to be broached in this case my brother did not want whit hands the ones used are fron Jules Borel

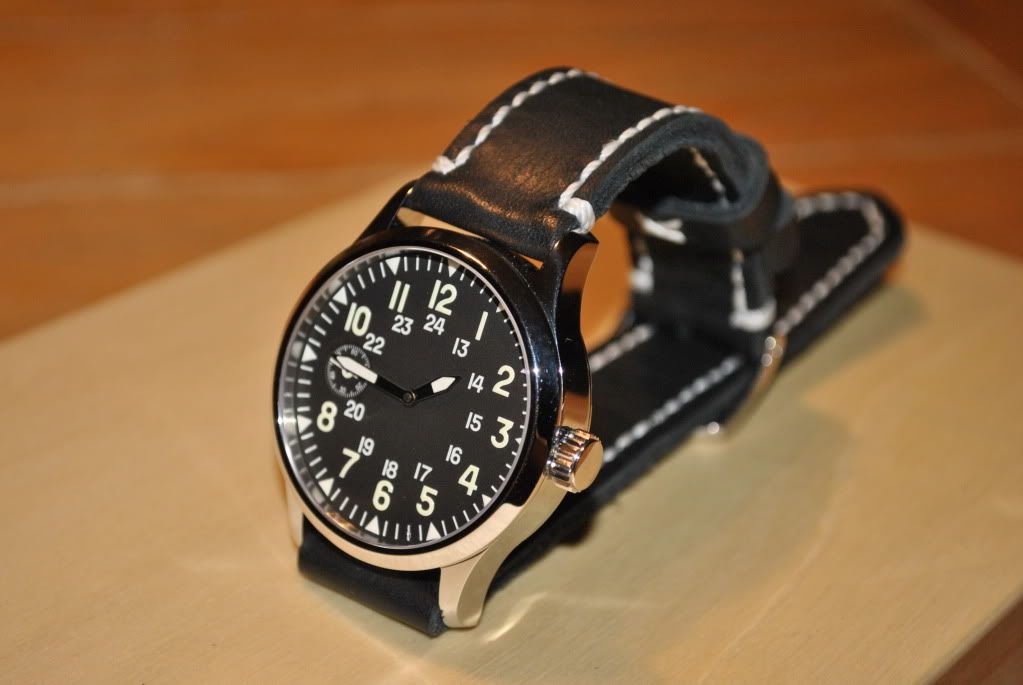

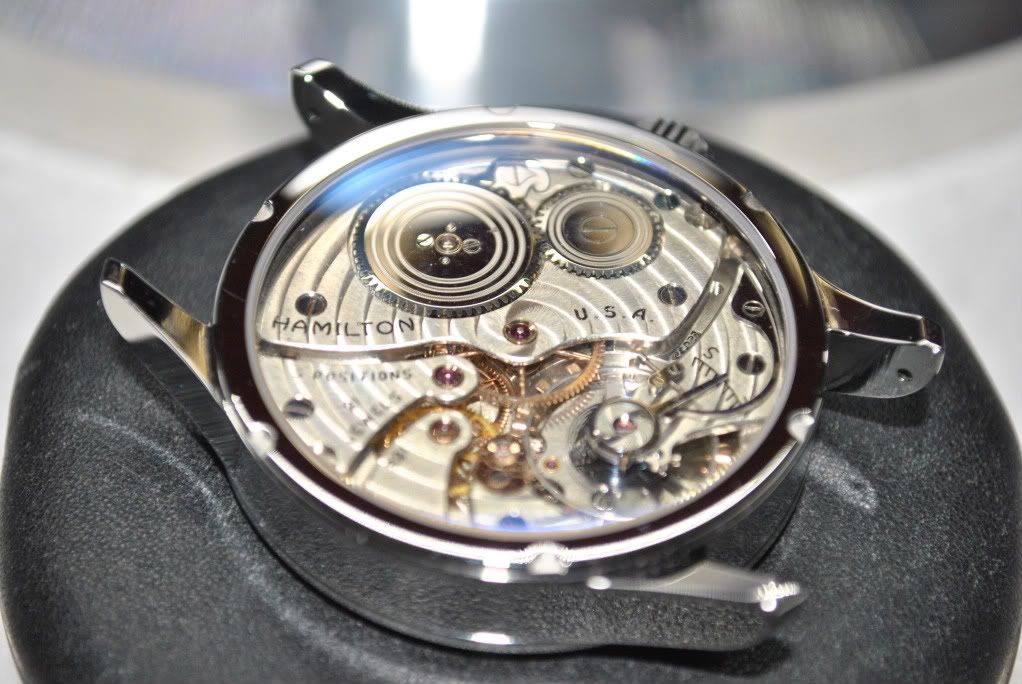

I finished it with strap I made in my hotel room in Kansas city I also included a Nato nylon, I put everything in a foam filled box and gave him all the information I could get on the movement, the movement is a Hamilton 921 built between 1932 and 1933.
[IMG]http://i60.photobucket.com/albums/h12/MarcusB_photos/DSC_6754.jpg[IMG]
[IMG]http://i60.photobucket.com/albums/h12/MarcusB_photos/DSC_6748.jpg[IMG]

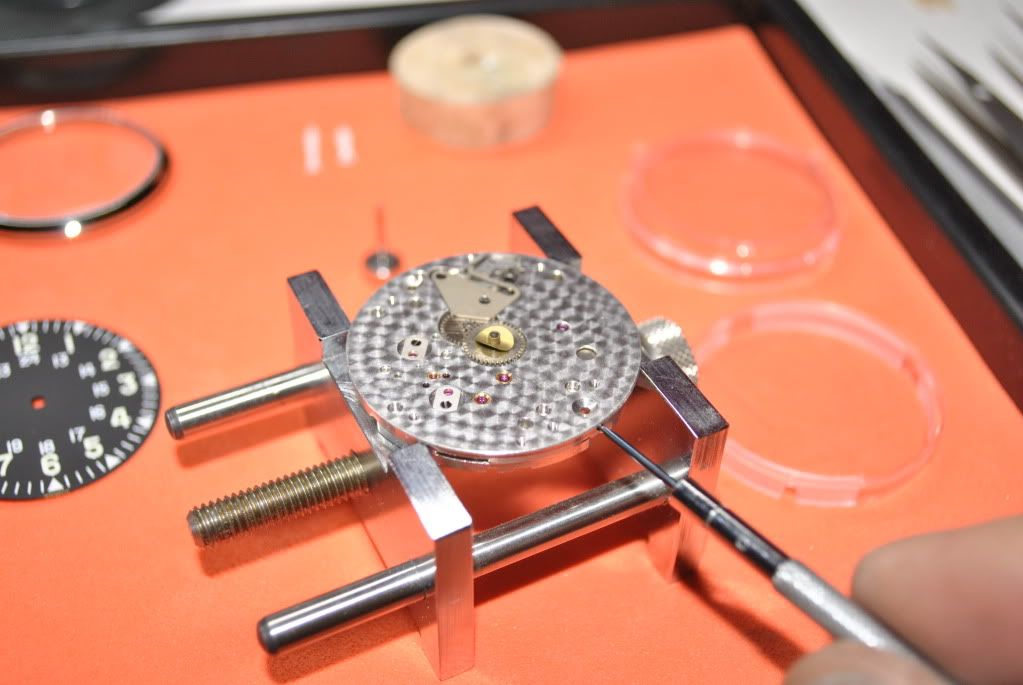

Had to tweak the cannon pinion a bit
[IMG]http://i60.photobucket.com/albums/h12/MarcusB_photos/DSC_6750.jpg[IMG]


Wed Apr 13, 2011 3:10 am
Profile
Sponsor
User avatar

Joined: Sat Aug 22, 2009 4:02 pm
Posts: 5459
Country: Canada (ca)
Post Re: Thought id share this with you.
Very nice! Your shop looks to be a WIS's playground.

_________________
Click the banner below to go to my Strap Gallery



Twitter - @BlueRadishStrap
Instagram - @blueradishstraps
Facebook - @blueradishstraps


Wed Apr 13, 2011 4:21 am
Profile WWW
Moderator & Village Idiot
User avatar

Joined: Tue Jul 06, 2010 11:13 am
Posts: 16213
Location: Where the stars at night are big and bright
Country: Virgin Islands (US) (vi)
Post Re: Thought id share this with you.
I am in awe of your work bench :thumbup:

Nice watch too. :clap:


Wed Apr 13, 2011 4:27 am
Profile
VIP Member
User avatar

Joined: Fri Dec 25, 2009 2:56 pm
Posts: 2452
Location: Southern tip of Canada
Country: Canada (ca)
Post Re: Thought id share this with you.
After seeing this, I will never show a pic of my workbench :oops: .

Beautiful watch X-treme !

CHeers


Wed Apr 13, 2011 5:37 am
Profile
VIP Member
User avatar

Joined: Tue Jan 19, 2010 1:43 pm
Posts: 5629
Country: United States (us)
Post Re: Thought id share this with you.
Yes, in Ehrhardt's Hamilton reference books (the authority on Hamilton pocket watches), the venerable Hamilton 921 started in 1936.
And yes, that is a beautiful piece of work you did there. :thumbup:


Wed Apr 13, 2011 7:03 am
Profile
Watch Geek
User avatar

Joined: Wed Feb 16, 2011 10:31 am
Posts: 280
Country: United States (us)
Post Re: Thought id share this with you.
Beautiful! What a great gift to give too. Sooooooo jealous of that workbench!!!!

_________________


Wed Apr 13, 2011 7:10 am
Profile
VIP Member
User avatar

Joined: Sat Jul 24, 2010 2:09 pm
Posts: 3700
Location: USA
Country: United States (us)
Post Re: Thought id share this with you.
Amazing work! Very nice job! :thumbup: :thumbup:
Beautiful workshop by the way.

_________________
"I would love to win toothpicks from Neckyzips"

Past Builds:
LP 6154 V3 - California 3646 - Cream 6154 V2 - Cream 6154 V1 - LP 6154 V2 - LP 6154 V1
Pre-V 202/a -6152/1 4-Liner Hamilton - Pilot 917 - PAM GOGH - Destro Fiddy - TO Mini-Fiddy


Wed Apr 13, 2011 7:24 am
Profile
VIP Member
User avatar

Joined: Sun May 09, 2010 8:11 am
Posts: 1728
Location: Montreal
Country: Canada (ca)
Post Re: Thought id share this with you.
Thanks everyone it's my escape room my wife calls it my grotto LOL

Michael your absolutely right sorry bout that I went beck to the documents I gave my brother and it was built between 1937/38 thanks for the heads up.

Have a good one everyone i'm going back to my hotel room strap making.

Marcus


Wed Apr 13, 2011 8:45 am
Profile
New Member

Joined: Sun Jan 30, 2011 3:06 am
Posts: 23
Country: United Kingdom (uk)
Post Re: Thought id share this with you.
The skills displayed here are awesome. Stunning watch is a bonus.


Sat Apr 16, 2011 10:18 am
Profile
Watch Fanatic

Joined: Mon Aug 10, 2009 5:38 am
Posts: 945
Post Re: Thought id share this with you.
Awesome! :thumbup:

I would have been tempted with a classic diamond-shaped crown but it looks fresh like that :)


One noob question though... :? :oops:

What's the part that curves up round the cannon pinion in this pic?


Does the dial just squash it flat??

_________________

Dyle wrote:
A bit of vaseline helps it slide in.


Sat Apr 16, 2011 10:24 am
Profile
Moderator
User avatar

Joined: Fri Apr 10, 2009 1:56 pm
Posts: 6745
Location: Hollywood
Country: United States (us)
Post Re: Thought id share this with you.
It's the washer that goes between the dial and hour wheel, and helps hold the hour wheel in place (the dial is technically the retainer for the hour wheel in most cases).

_________________

Spiral Breguet Elinvar 17 Rubis Fab. Suisse

Current::

TBD

Former:

Helson Sharkmaster
3646 Kampfschwimmer Type-E build w/ OEM dial
WatchMaster Kenzo 3646 Kampfschwimmer homage
Rolex Oyster Perpetual 6564
Lucawatch Landeron Polaris Compressor
PAM 6152 / 6154 homage
RXW SubProMarine Revolution
RXW ZeroMaster GMT
Sport Time Chronograph 1000
RetroChron SeaSerpent 1 61-55 Chronograph


Sat Apr 16, 2011 11:30 am
Profile WWW
Watch Fanatic

Joined: Mon Aug 10, 2009 5:38 am
Posts: 945
Post Re: Thought id share this with you.
So the hour wheel would just fall out without either the washer or the dial?

An interesting setup... lol


Thank you for the info, though! :)

_________________

Dyle wrote:
A bit of vaseline helps it slide in.


Sat Apr 16, 2011 2:46 pm
Profile
Moderator
User avatar

Joined: Fri Apr 10, 2009 1:56 pm
Posts: 6745
Location: Hollywood
Country: United States (us)
Post Re: Thought id share this with you.
Member X wrote:
So the hour wheel would just fall out without either the washer or the dial?

An interesting setup... lol


Thank you for the info, though! :)


Without the dial at least, and depending on how high the dial is mounted away from the movement, the washer as well.

_________________

Spiral Breguet Elinvar 17 Rubis Fab. Suisse

Current::

TBD

Former:

Helson Sharkmaster
3646 Kampfschwimmer Type-E build w/ OEM dial
WatchMaster Kenzo 3646 Kampfschwimmer homage
Rolex Oyster Perpetual 6564
Lucawatch Landeron Polaris Compressor
PAM 6152 / 6154 homage
RXW SubProMarine Revolution
RXW ZeroMaster GMT
Sport Time Chronograph 1000
RetroChron SeaSerpent 1 61-55 Chronograph
