Heuer 844 Orange Diver project
Author Message
Elite Member
User avatar

Joined: Tue Jan 19, 2010 8:18 pm
Posts: 247
Post Heuer 844 Orange Diver project
Finished this project about a month ago after a ruinous eBay and forum rampaging splurge on parts. The iconic Heuer 844 Orange diver.

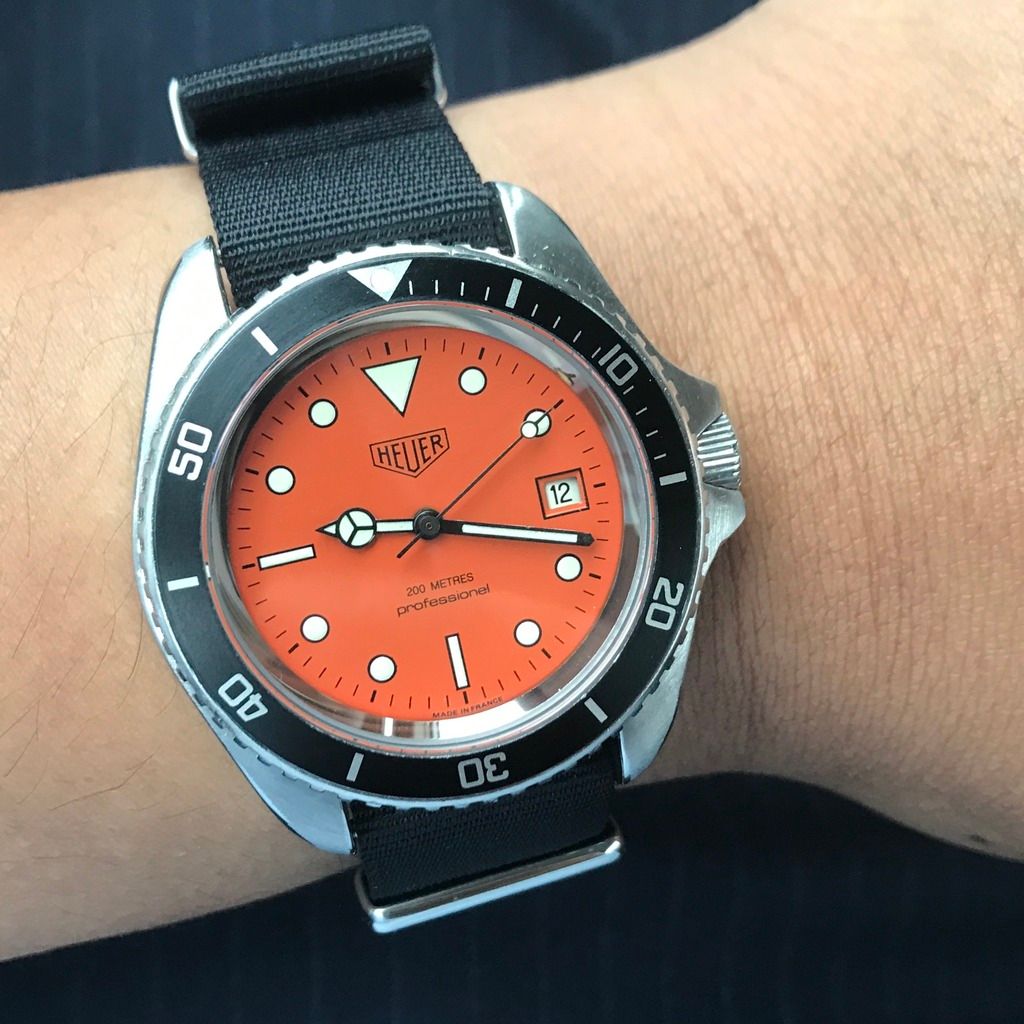

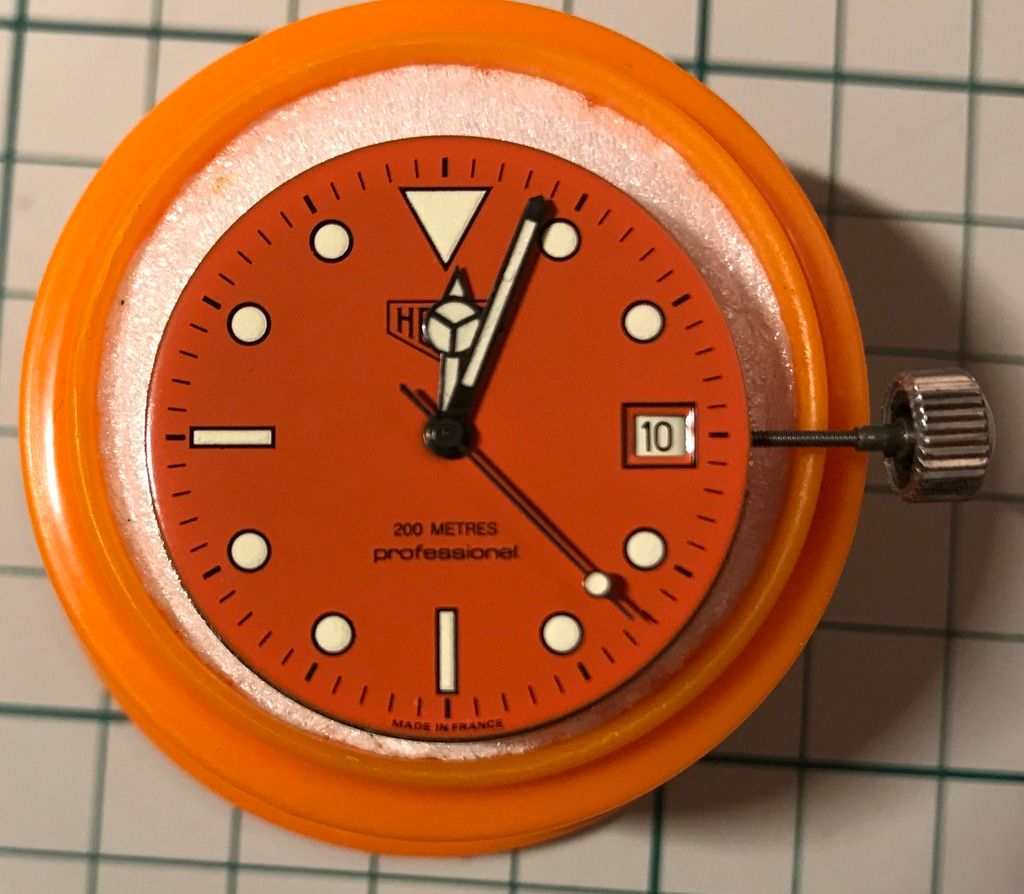

Notice anything interesting about the dial?

Yup. It's 'Made in France'. This is one of the first divers made by Monnin for Heuer, before the latter fully committed to the diver market and started producing their own around 1980. Interestingly, Monnin Holding AG is apparently now owned by three shareholders: Patek Philippe, Richemont Group and Rolex. Heuerville will keep me honest. Check it out.

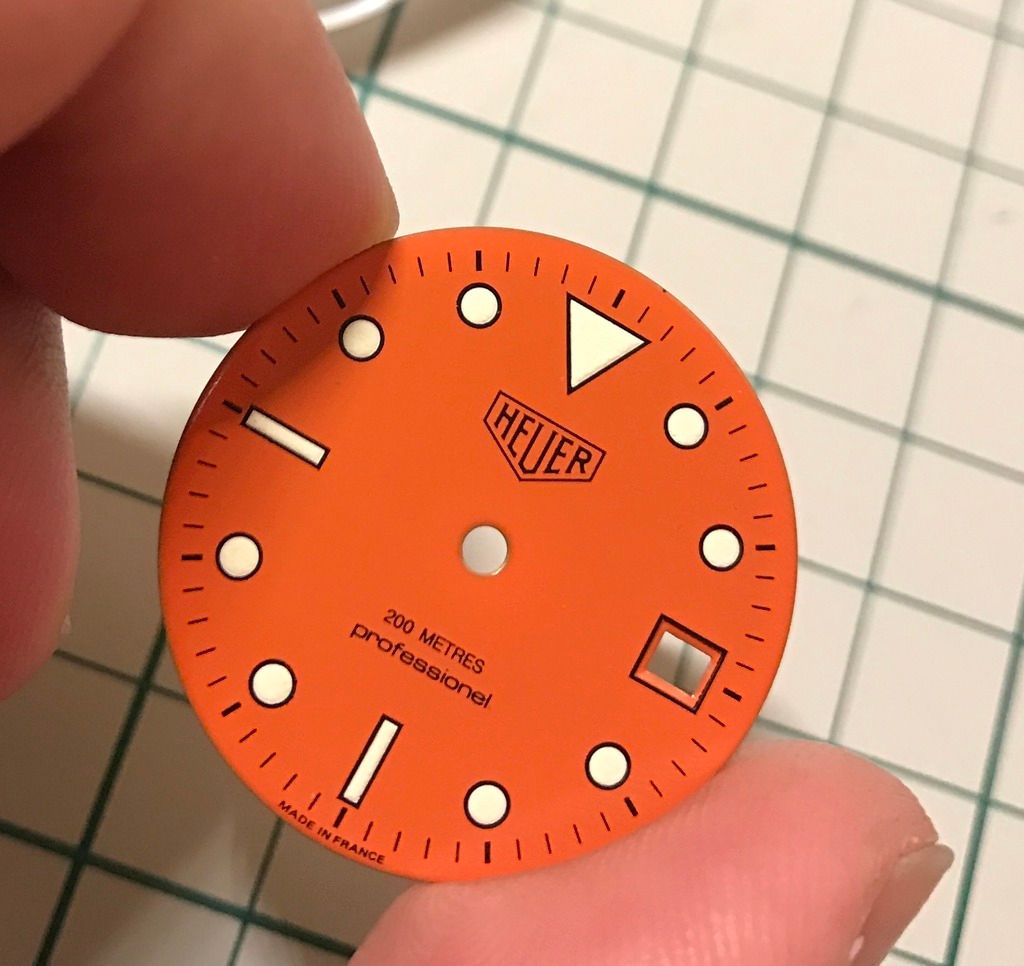

The dial. All original. And cheap. Easily found on the 'bay' with a supplier that perennially seems to have 'only 3 left'. I bought 3. And the seller has more. Suggest you get these while you can.

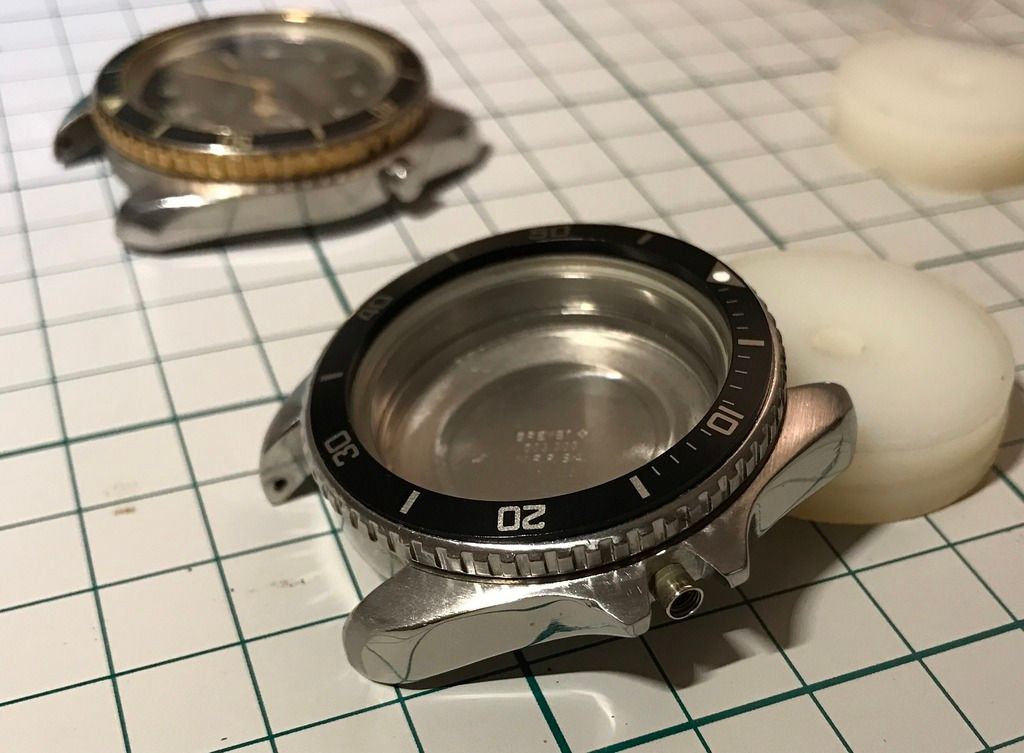

The Case. Many divers of the era shared the same case originally built by Buren (think squale). This case lives on today as the CWC Royal Navy Diver, the issued successor to the Rolex MilSub 5517.

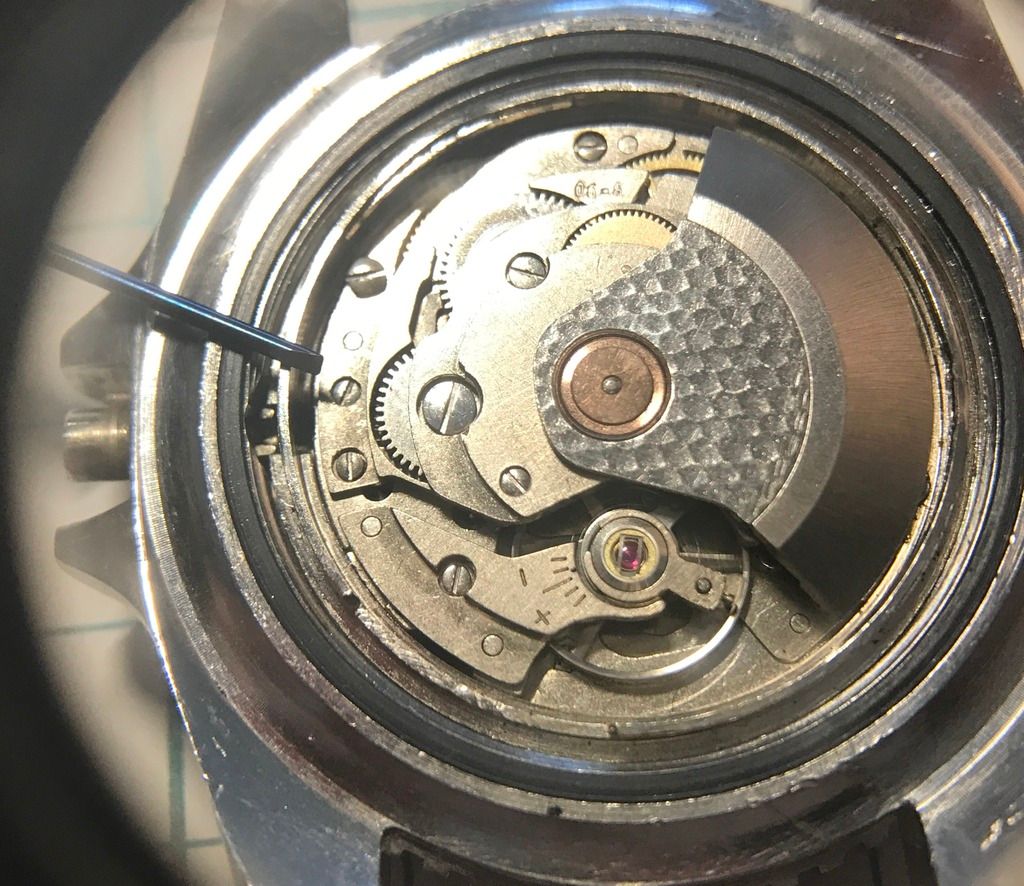

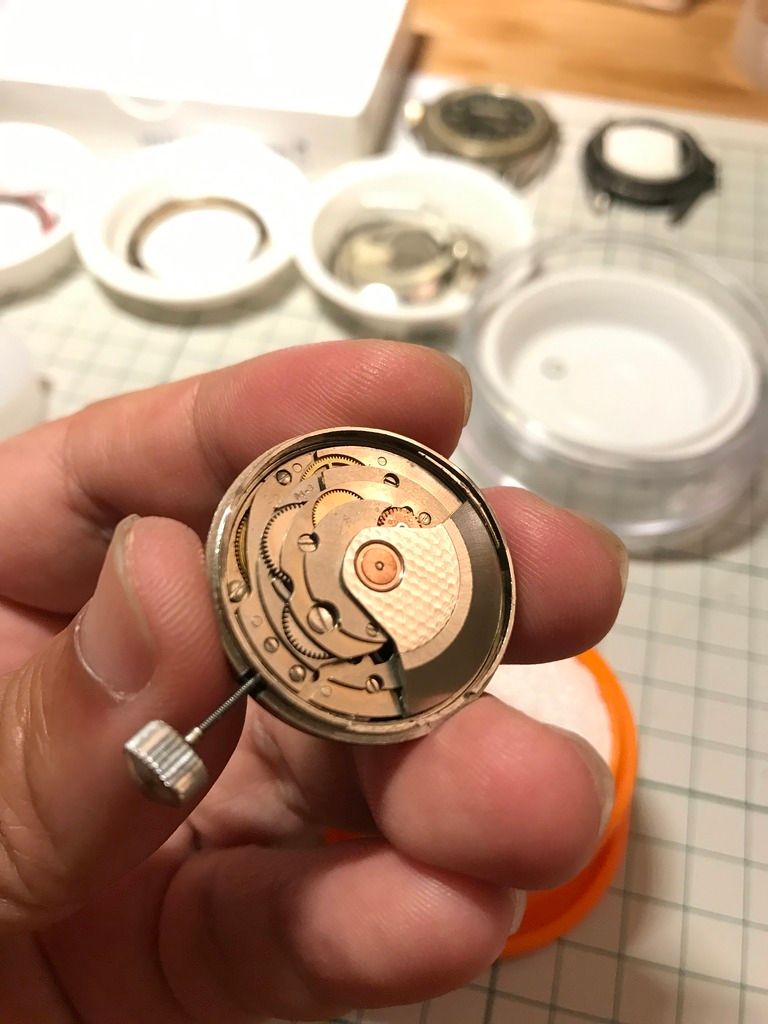

The Movement. FE 4611. French Ebouche 4611. French made awesomeness.

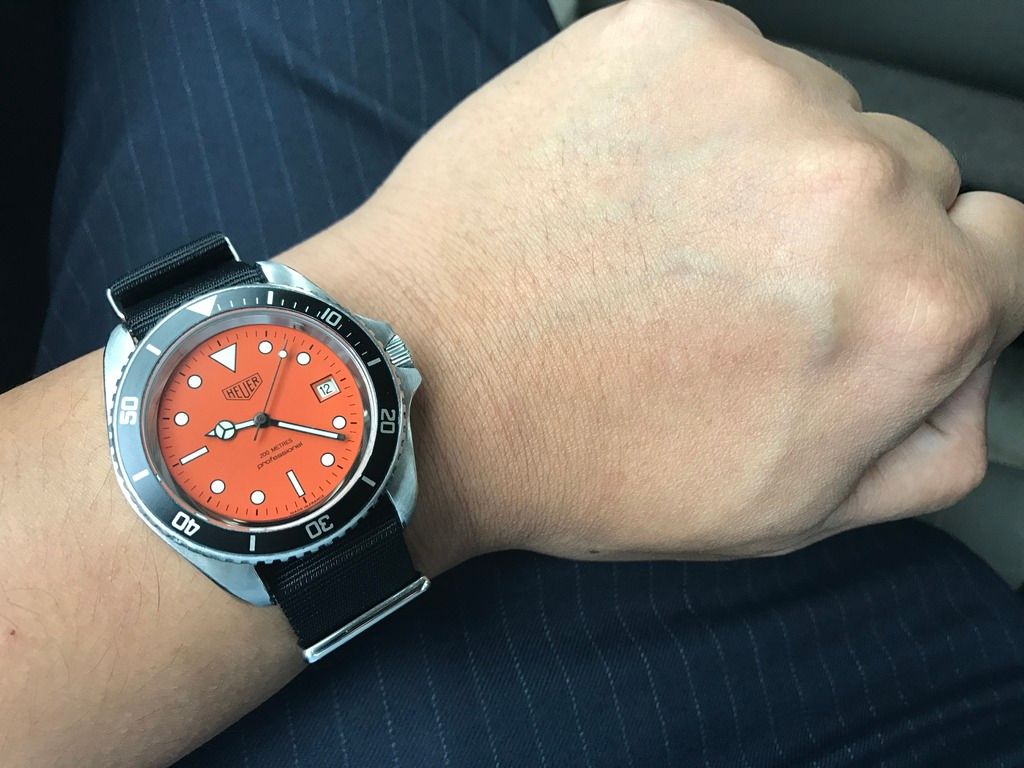

Closeup.


Thanks for looking!

_________________
Italiano projects: 6152/1 LP, 6152/1 LPMM no CG, Work in progress
Oyster projects: Milsub 5517, Milsub 5517 Updated
Heuer projects: 844 Orange Diver, 980.027


Last edited by mir36 on Mon May 01, 2017 1:17 am, edited 1 time in total.



Sat Apr 29, 2017 10:49 pm
Profile
VIP Member
User avatar

Joined: Sat Mar 23, 2013 12:49 pm
Posts: 2454
Country: Switzerland (ch)
Post Re: Heuer 844 Orange Diver project
Looks good, I like it, nice job :thumbup: :clap:


Sat Apr 29, 2017 11:03 pm
Profile
Moderator
User avatar

Joined: Sun May 22, 2011 12:30 pm
Posts: 5610
Country: Spain (es)
Post Re: Heuer 844 Orange Diver project
Hunting down rare pieces looks like fun. Congratulations.

_________________

Panerai reference pictures (update: Jun/3/2016)
https://mega.co.nz/#F!8R0FWaoS!IAasZXfb14Z7R1H6CLYp6w

Instagram
http://instagram.com/emisansev


Sun Apr 30, 2017 2:26 am
Profile
Watch Geek

Joined: Mon Feb 15, 2016 5:30 am
Posts: 270
Country: Singapore (sg)
Post Re: Heuer 844 Orange Diver project
orange look sporting. :thumbup:


Sun Apr 30, 2017 2:28 am
Profile
Watch Fanatic
User avatar

Joined: Sun Jun 23, 2013 8:28 am
Posts: 1168
Country: Serbia (rs)
Post Re: Heuer 844 Orange Diver project
Very nice mate! :thumbup:


Sun Apr 30, 2017 4:17 am
Profile
Watch Wizard
User avatar

Joined: Fri Jan 29, 2010 9:14 am
Posts: 695
Post Re: Heuer 844 Orange Diver project
Excellent thread and work
That's what it's all aboit

_________________
JEEBUS WANTS U FOR A SUNBEAM


Sun Apr 30, 2017 4:37 am
Profile
Elite Member
User avatar

Joined: Tue Jan 19, 2010 8:18 pm
Posts: 247
Post Re: Heuer 844 Orange Diver project
Thanks guys. Glad you like it. This ain't HF if you can't share the knowledge, so here's a few more build pics.

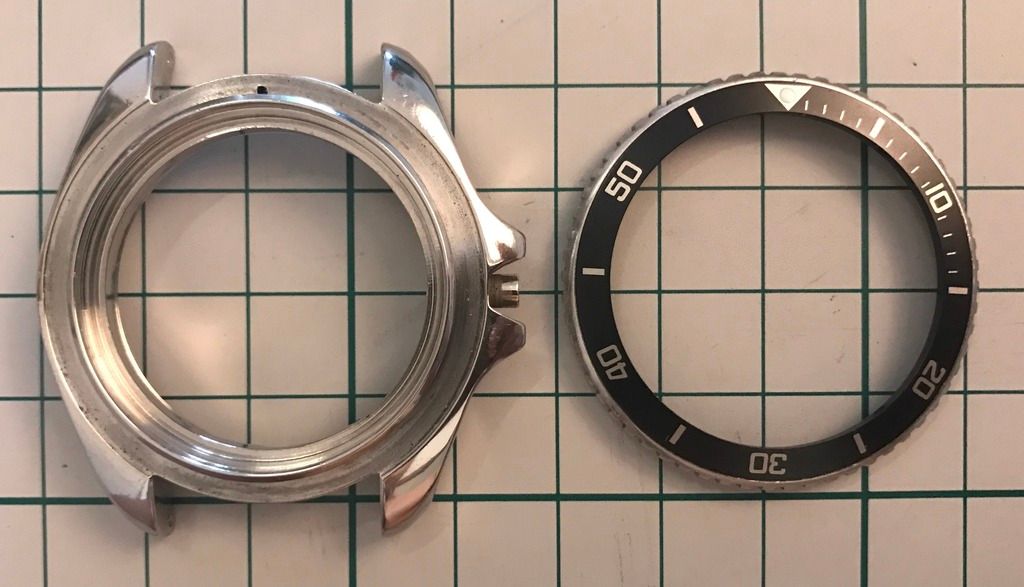

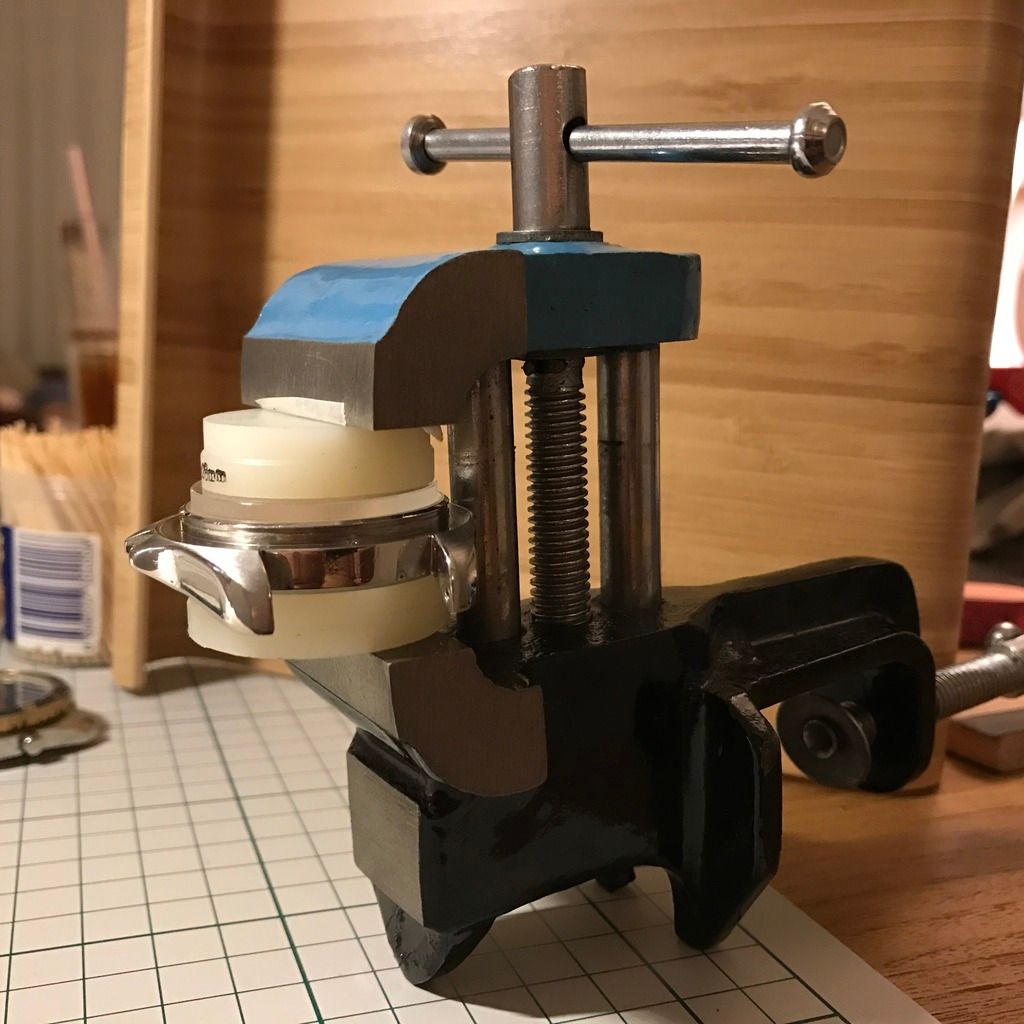

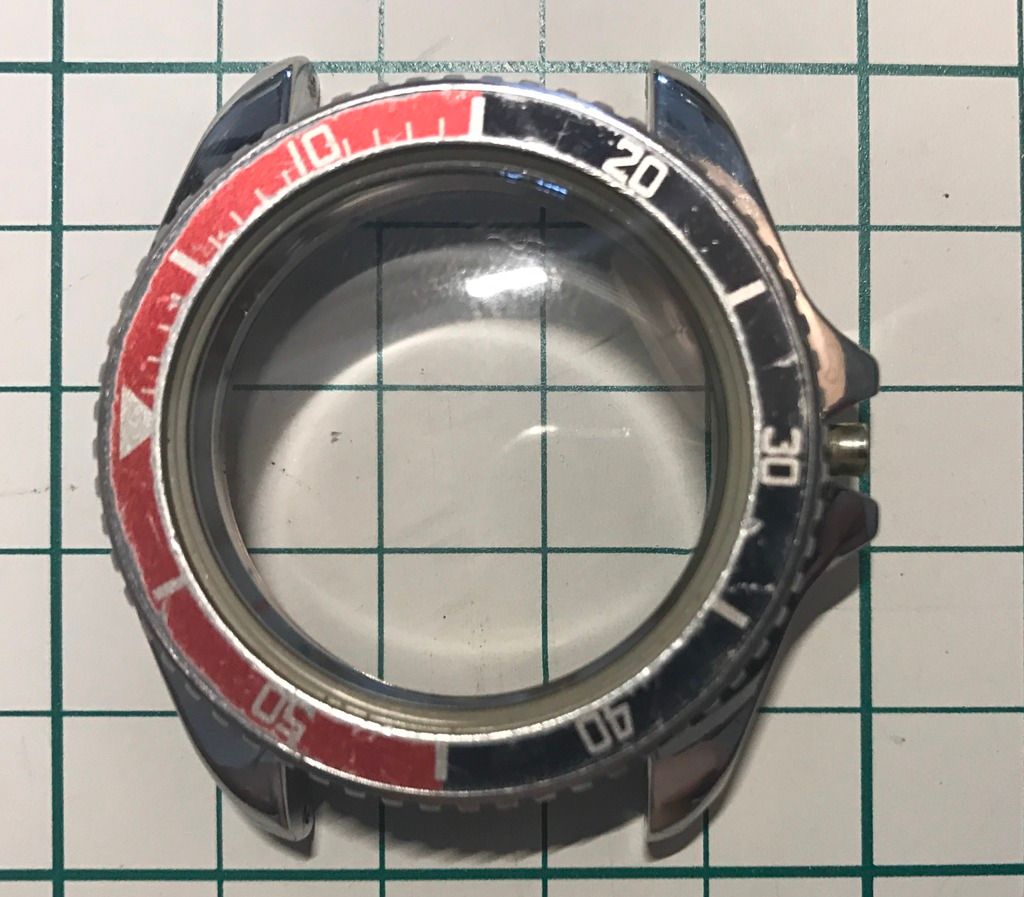

First, the donor case deconstructed. Relatively simple. I used a butter knife to pry apart the bezel assembly.

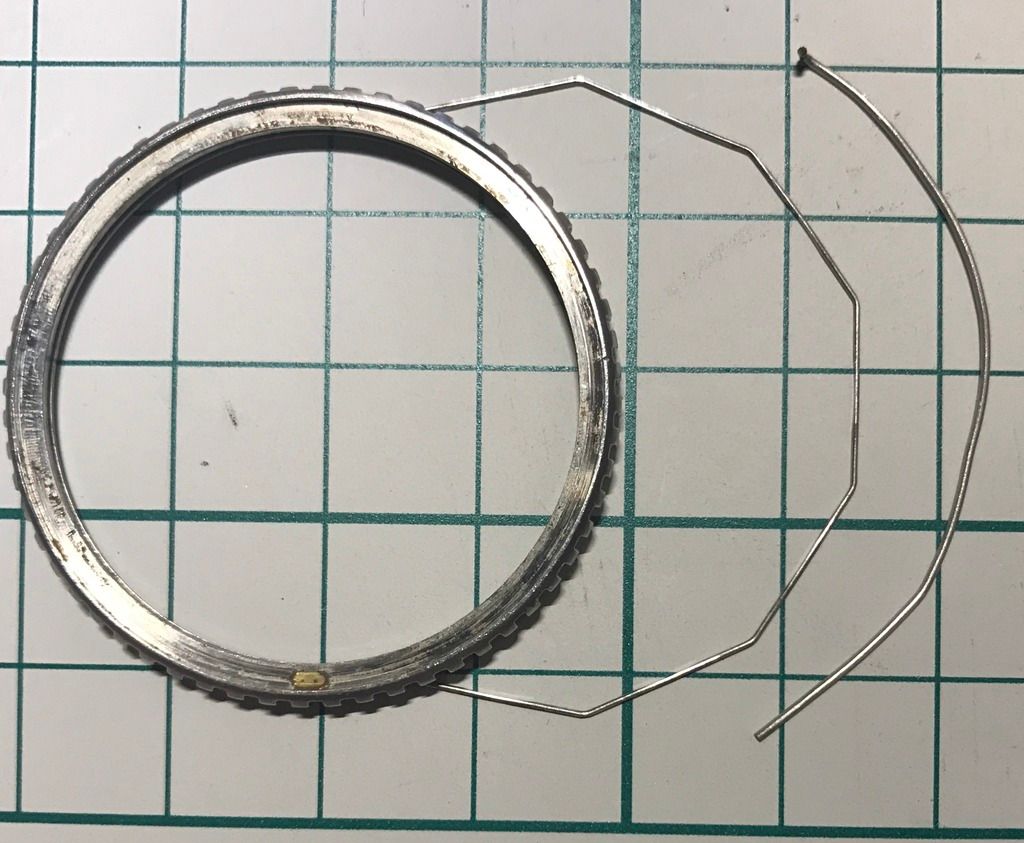

A closeup of the bezel assembly... I kept taking pictures so I could remember where everything came from.

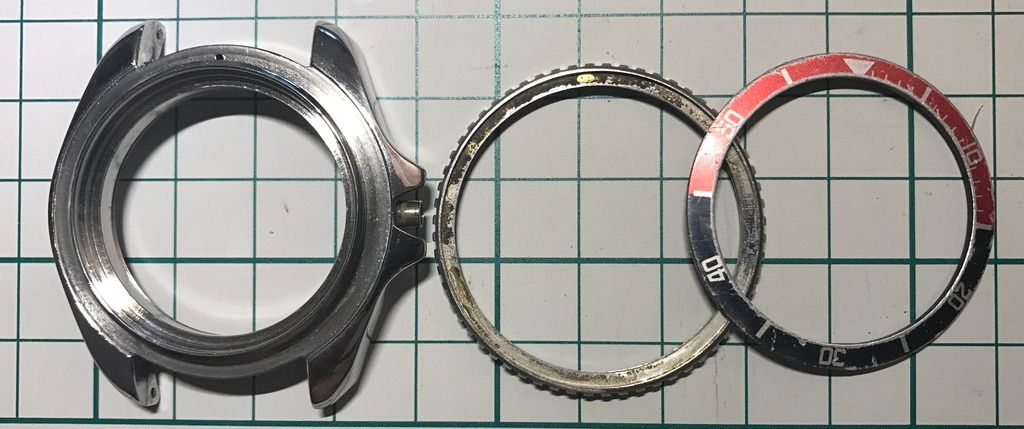

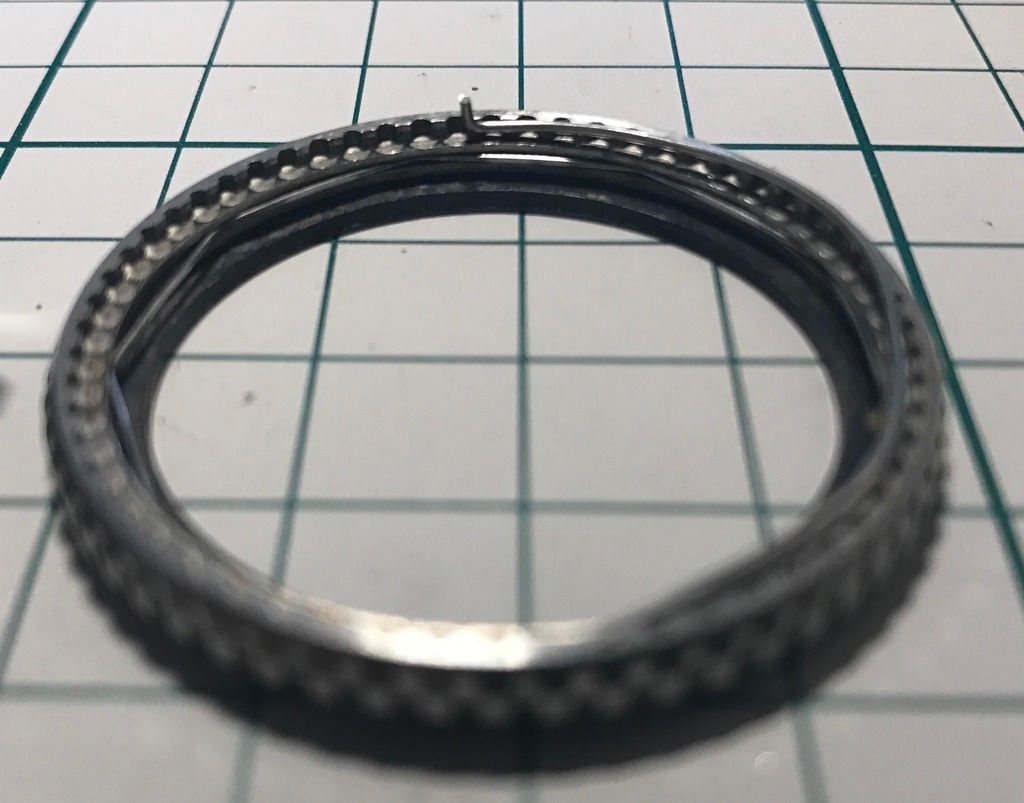

... and the disassembled bezel. I'm used to PAMs and vintage Rolex, so this was the first time I saw this assembly up close.


The case after a few sonic cleaning cycles and the bezel with the new insert.

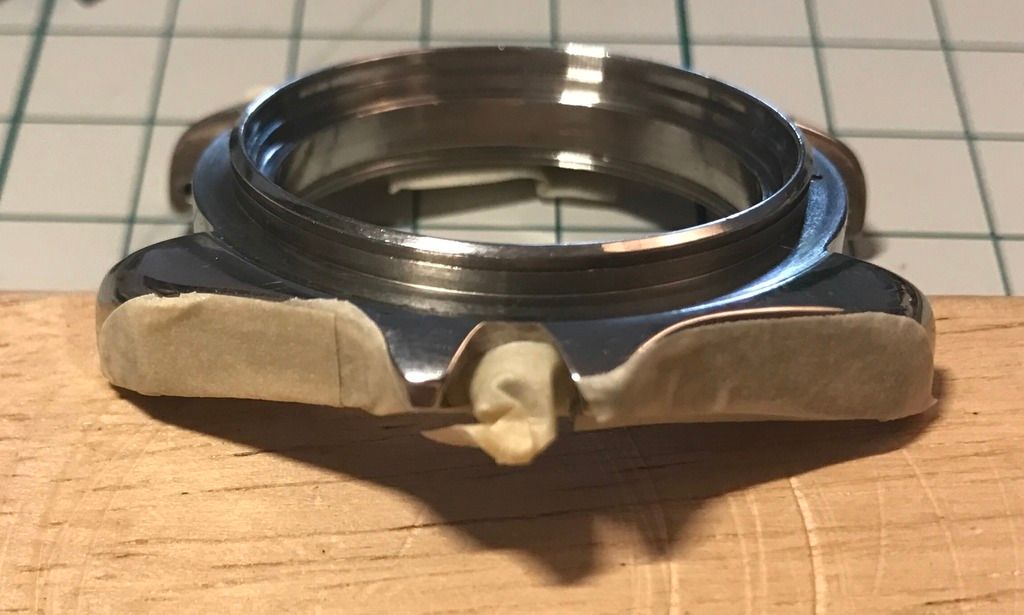

Afterwards I re-brushed the top surfaces of the case...

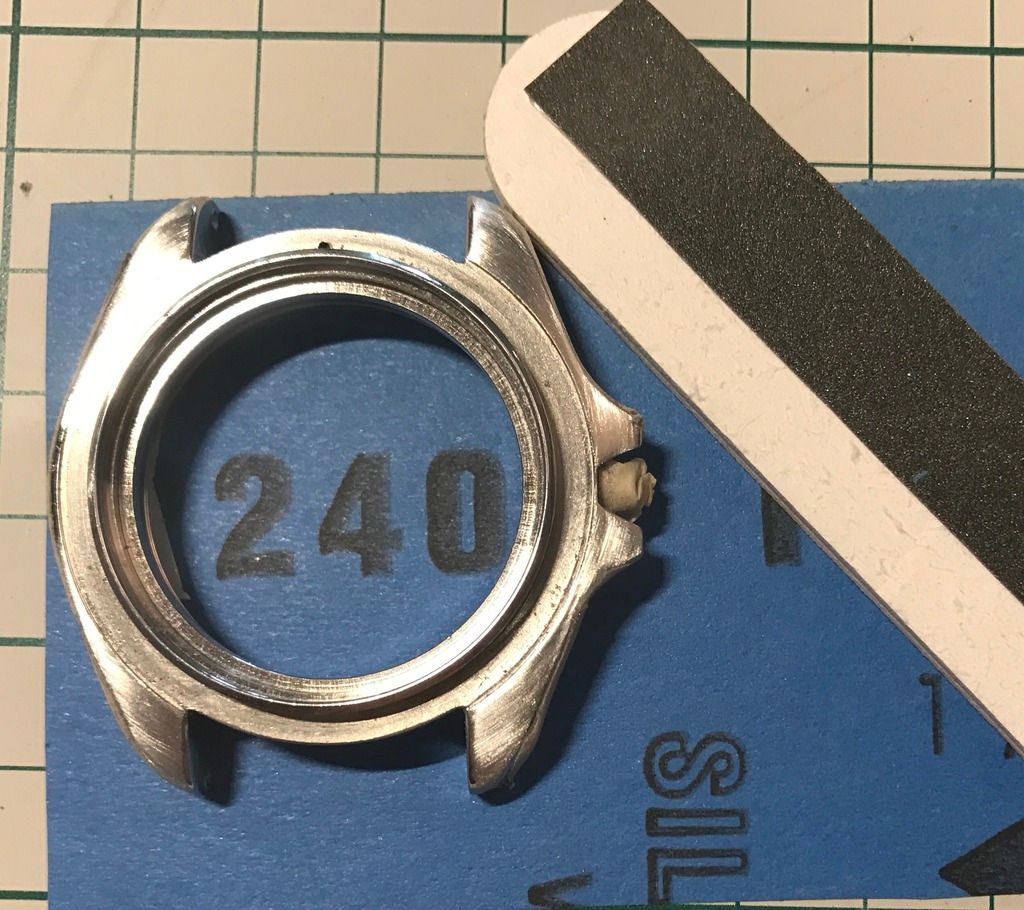

... with a good high quality German 240 grit sandpaper and a nail file.


The end result. I know, the brushing is hard to see, but it's there.


I installed the the new sapphire crystal with my poor man's crystal press: a vise. My standard crystal press failed me with uneven distribution of pressure and I found that this setup works flawlessly.

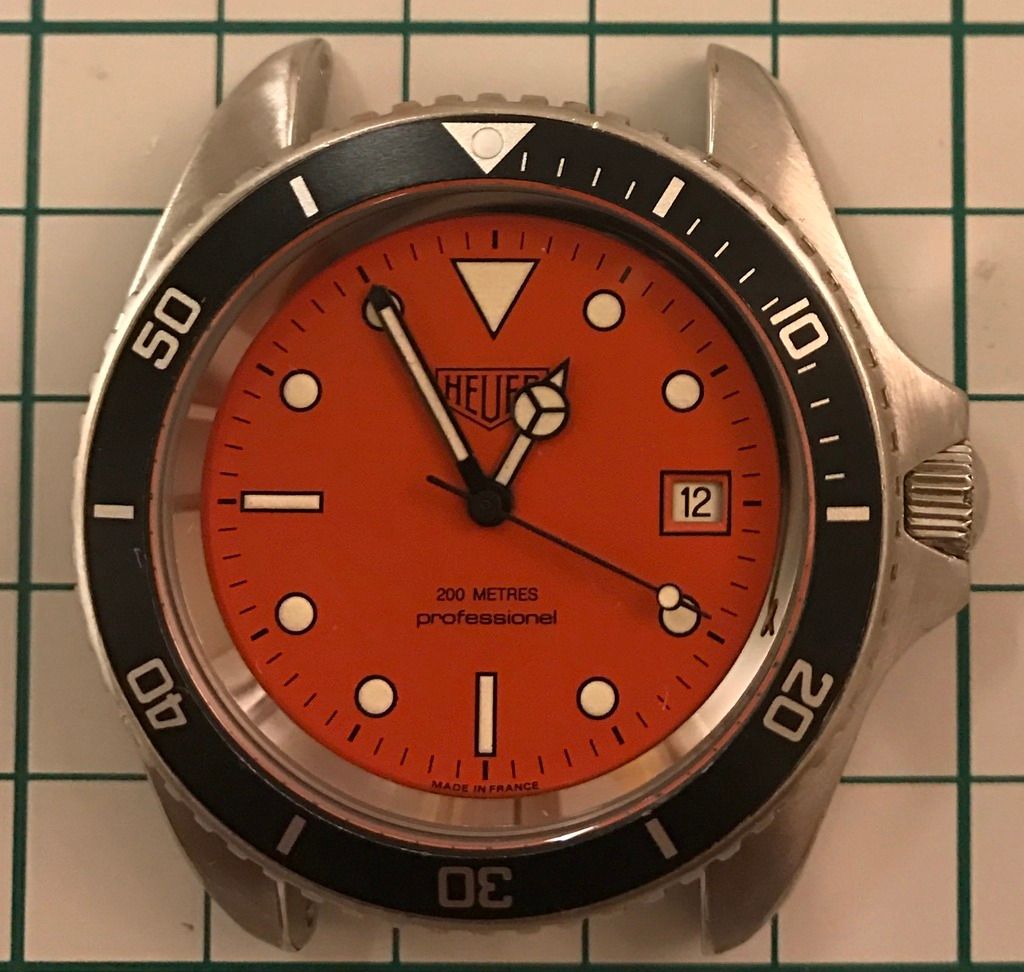

Mounted the dial on the FE 4611. There are two screws mounted on the y-plane that hold the dial feet together.
