One of a kind (for now) what do you think? MODEM BURNER
Author Message
VIP Member
User avatar

Joined: Sun May 09, 2010 8:11 am
Posts: 1728
Location: Montreal
Country: Canada (ca)
Post One of a kind (for now) what do you think? MODEM BURNER
Sitting in a hotel room in Dublin with nothing to do so I thought id introduce you to The Industrial.
The name comes from the fact I’ve work in the industrial field all my life and as I was making this watch the name made sense.
Everything is done by hand there is no CNC involved it’s time consuming and with my normal job taking me out of the country all the time it’s annoying not to be able to work on them.

The case takes about 30 hours to make
The buckle takes 8 hours to make

Your opinions would mean allot to me.

Thanks

Info
Case parts 316L stainless steel
Buckle 304 stainless steel
46mm without crown
53.5mm with crown
56mm corner to corner
61.6mm lug to lug
14.6mm thick
27mm strap
Genuine ETA 6497-2 or 6498-2 Swiss movements
2mm domed sapphire top crystal
1.5mm flat sapphire bottom crystal
Oversized O-ring sealed case
Crown with oversized O-ring seal
5ATM tested Wet and Dry
Movement spacer 6061 T6 aluminum
Bolts 304 stainless steel Allen type
German made face Superluminova™
German made hands Superluminova™

The first pics are of the prototype it was made to prove that the watch can be made waterproof to 5 ATM the bottom of the case is flat on the prototype but it is curved on the production case.
Prototype pictures
Buckle making
The buckle blank

Drilling, tapping
Milling after drilling and tapping
The evolution
Almost done
The Finished buckle and tang
Comparing the buckle to a Casio
The strap 27mm

Case making
Drilling the blank

Machining outside diameter to nominal
Parts with there respective donor blanks
Crown still on its donor shaft
The finished parts
Movement ring
Screws used
Size matters
The lugs (unfinished)
Just before assembly
The assembled case
The first wrist shot
Comparing size The Rad is a 47mm
Wrist shot


Production Piece

The production piece has more refined lines, the bezel is at an angle the case top is in the shape of a sphere, the back is curved so it sits better on the wrist, the crown was reduced in diameter, the top crystal now has a curved shape and is Swiss made, there screws are refined and the strap screws now have a finishing piece, all in all I’m pleased with the watch it’s comfortable to wear even though it’s big.
Notice there are no brand markings I didn’t put any on #1 and I purposely left them out of this post I’m not here to sell them I just want your opinion.

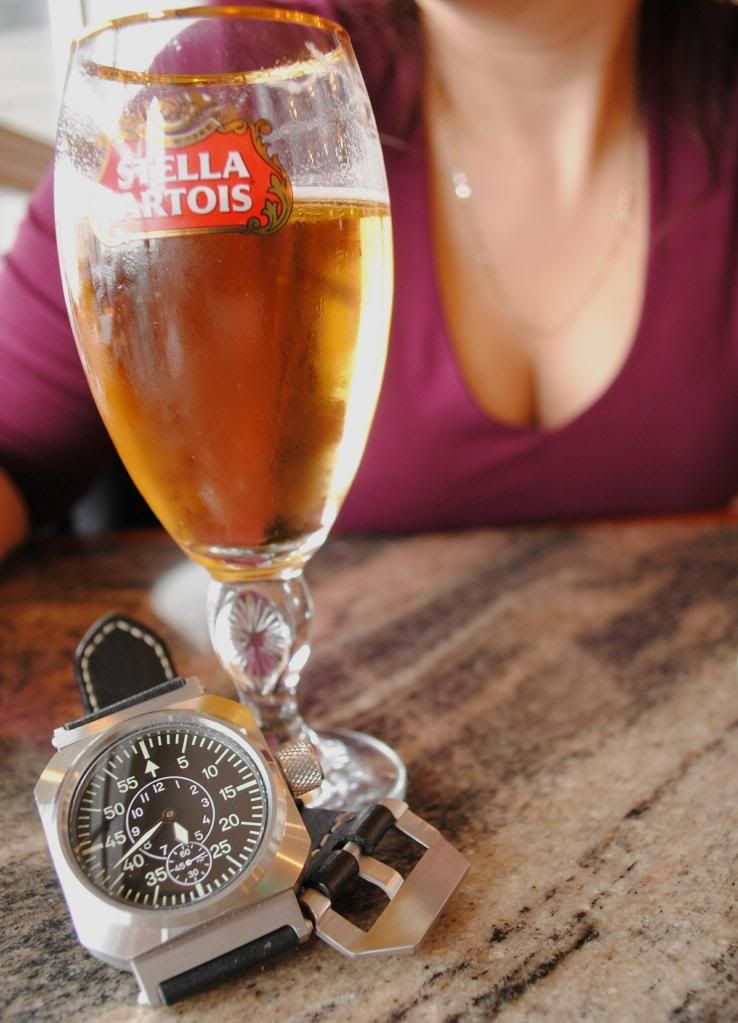

Try not to get too distracted eyes on the watch LOL

Curved back
The side wrist shot

Future automatic

For my 50th best wife anyone can have.

Thanks for looking

Marcus


Sat Jul 10, 2010 4:38 pm
Profile
Moderator

Joined: Fri Jan 22, 2010 6:31 am
Posts: 15651
Country: Ireland (ie)
Post Re: One of a kind (for now) what do you think? MODEM BURNER
:clap: WOW :clap:

_________________
Try today, fail today. Try tomorrow, fail better.
No good deed goes unpunished.
----------
franken mille metri (bronzo) Mark 1 (ENGRAVED DIAL)
franken mille metri (bronzo) Mark 2 (TROPIC PLEXI)

Upcoming builds
alu mille metri (rip)?
viewtopic.php?f=26&t=36290&p=482845&hilit=franken+bronzo#p482845
______
DIY made easier- everything you wanted to know •
viewtopic.php?f=42&t=4359&p=39253#p39253
[url=http://s605.photobucket.com/user/mellorsr/media/wi8Ez1mwRcKGI_zpspd68kak5.gif.html][img]


Sat Jul 10, 2010 4:58 pm
Profile
Watch Idiot Savant
User avatar

Joined: Tue Sep 29, 2009 2:54 pm
Posts: 2772
Post Re: One of a kind (for now) what do you think? MODEM BURNER
That is a nice watch :thumbup:

It would be nice to have a 44mm, but really I am very impressed.


Sat Jul 10, 2010 5:20 pm
Profile
VIP Member
User avatar

Joined: Mon Jan 11, 2010 4:50 pm
Posts: 1000
Location: Lisboa, Portugal
Country: Portugal (pt)
Post Re: One of a kind (for now) what do you think? MODEM BURNER
Amazing work!!!

And nice cake btw ;)

_________________
Looking for a Cortebert 616? PM I might be able to help!

Q25 & Q24 Plexis available here

In my watch box:
Esdee 3646 Cali case Swiss 6497
PAM Getat 1950 47mm
PAM Jackson 44mm PowerReserve MM139
MQJ Sterilized
Orange Alpha Ocean Planet
Blue Alpha Seamaster
Blue Parnis Portuguese
GEN Zeno-Watch-Bazel Airplane Diver quartz :/

IN THE DRAWING BOARD:
A6152/1 w/ SF240
A6154 w/ Hami 699
Bronze A6154 Rolex dial w/?
A3646 w/ Swiss 6498
2533 w/ Swiss 6497
6152/1 w/ Hami 945
6152/1 w/ Molnija 3601


Sat Jul 10, 2010 5:25 pm
Profile
Watch Geek
User avatar

Joined: Wed Mar 17, 2010 2:32 am
Posts: 402
Location: Frankonia, Germany
Country: Germany (de)
Post Re: One of a kind (for now) what do you think? MODEM BURNER
i´m speechless with excitement :clap:


Sat Jul 10, 2010 5:35 pm
Profile
VIP Member
User avatar

Joined: Wed Jan 20, 2010 5:35 pm
Posts: 2569
Location: 1°17′N 103°50′E
Country: Singapore (sg)
Post Re: One of a kind (for now) what do you think? MODEM BURNER
elfonzo wrote:
That is a nice watch :thumbup:

It would be nice to have a 44mm, but really I am very impressed.


+1 for that..... definitely buy it if there's a 44mm for this baby on a 24mm strap! :clap:

_________________
"I like my watches like I like women, BIG AND BEAUTIFUL."


Sat Jul 10, 2010 6:40 pm
Profile
VIP Member
User avatar

Joined: Wed Apr 21, 2010 5:20 am
Posts: 2055
Location: 28.270911,-82.364507
Country: United States (us)
Post Re: One of a kind (for now) what do you think? MODEM BURNER
Wow! My only comment would be "can you make one, please?". :mrgreen:
Truely a work of art from the case to the buckle. To know that you hand crafted the metal makes it even more amazing.
I applaud your work and look forward to more announcements regarding your watchmaking.

Cheers,
George

_________________
Cheers,
George


Sat Jul 10, 2010 7:25 pm
Profile WWW
Moderator
User avatar

Joined: Fri Apr 10, 2009 1:56 pm
Posts: 6745
Location: Hollywood
Country: United States (us)
Post Re: One of a kind (for now) what do you think? MODEM BURNER
Honest opinions:

I like the case. The style reminds me of some of the Enzo Mechana prototypes that were posted on Enzo's forum: http://www.enzomechana.com/em/forum/vie ... a&start=30

...but that's true for any bulky pieces with steep, clean edges. Your dial choice is much better, and I like your lugs design better than all of those except for the two with the Submariner style lugs.

The back looks kind of plain with the hammered-finish 6497. What about either going with the higher decoration striped + blued screws version? Retail cost is only about $60 more. Either that, or perhaps add some sort of body line around the back?

If you're going to be offering any sort of DIY case-kit (vs. complete watches), I might suggest a larger internal diameter to allow builders the option to utilize the plethora of 41mm-43mm 8-day movements (and regular pocket watch movements for that matter) that are out there. Just a thought.

_________________

Spiral Breguet Elinvar 17 Rubis Fab. Suisse

Current::

TBD

Former:

Helson Sharkmaster
3646 Kampfschwimmer Type-E build w/ OEM dial
WatchMaster Kenzo 3646 Kampfschwimmer homage
Rolex Oyster Perpetual 6564
Lucawatch Landeron Polaris Compressor
PAM 6152 / 6154 homage
RXW SubProMarine Revolution
RXW ZeroMaster GMT
Sport Time Chronograph 1000
RetroChron SeaSerpent 1 61-55 Chronograph


Sat Jul 10, 2010 8:13 pm
Profile WWW
Sober Master
User avatar

Joined: Tue Jan 19, 2010 1:36 am
Posts: 4552
Location: Sweden Scandinavia Europe
Country: Sweden (se)
Post Re: One of a kind (for now) what do you think? MODEM BURNER
Hixxy wrote:
If you're going to be offering any sort of DIY case-kit (vs. complete watches), I might suggest a larger internal diameter to allow builders the option to utilize the plethora of 41mm-43mm 8-day movements (and regular pocket watch movements for that matter) that are out there. Just a thought.



O a big +1 on that !

great looking watch and i really liked the "3 loves" picture (the watch the beer the boobs)

_________________
Civilization is just an elaborate conspiracy to make me wear pants

A man doesn't grow a beard. A beard grows a man !

MQJ´s #1 #2 #3 #4 #5 How to Mod a MQJ ? click at number 2 for a beginners guide
DIY Trench Soxa Pam beater mini fiddy destro A story of a dial TI tactical The White snake


Sat Jul 10, 2010 8:34 pm
Profile
Elite Member
User avatar

Joined: Thu Feb 04, 2010 5:22 am
Posts: 175
Location: Australia
Post Re: One of a kind (for now) what do you think? MODEM BURNER
Wow. That's pretty cool, interesting to see the whole process.


Sat Jul 10, 2010 11:38 pm
Profile
Watch Wizard
User avatar

Joined: Tue Jul 28, 2009 12:10 am
Posts: 624
Post Re: One of a kind (for now) what do you think? MODEM BURNER
Excellent in just about every way. I like the dial choice in the "future auto" much, much better than the B-uhr. Might just be because I know what a B-uhr is so it feels a little out of place in this case.

I have to disagree with Hixxy about the movement decoration and caseback look...it's perfect this way. You understand "industrial" to a T and this movement fits it exactly. It's so aesthetically clean that it almost looks like concept art.

_________________
"Didn't we have some fun though? Remember when the platform was sliding into the fire pit and I was like 'Goodbye', and you were like 'NO WAY!', and I was all 'We pretended we were going to murder you'. That was great..."


Sun Jul 11, 2010 12:15 am
Profile
New Member
User avatar

Joined: Sun Jul 04, 2010 4:06 am
Posts: 39
Post Re: One of a kind (for now) what do you think? MODEM BURNER
I love seeing people being creative, dude you are awesome & your Mrs is very pretty too.


Sun Jul 11, 2010 12:28 am
Profile
New Member
User avatar

Joined: Sun Jul 04, 2010 4:06 am
Posts: 39
Post Re: One of a kind (for now) what do you think? MODEM BURNER
Hixxy wrote:

If you're going to be offering any sort of DIY case-kit (vs. complete watches), I might suggest a larger internal diameter to allow builders the option to utilize the plethora of 41mm-43mm 8-day movements (and regular pocket watch movements for that matter) that are out there. Just a thought.


That is a damn fine idea, tons of pocket watch movements that could be used, I'd love to put an angelus SF180 to good use, id there was a case big enough


Sun Jul 11, 2010 12:35 am
Profile
Sponsor

Joined: Thu Jul 23, 2009 8:09 pm
Posts: 969
Location: ORANGE, NSW, AUSTRALIA
Post Re: One of a kind (for now) what do you think? MODEM BURNER
Mate

I like all of it including the beer. I don't feel too old (51 for me), knowing there is an old gezzer on the forum as well.

You have done a great job

I have been dreaming of Allen keyed bolts and there you are - I am assuming you just tapped them into the metal. Where do you get these tiny bolts (and key) (aside from having to buy a zilion from the Chinese). I want to replace my back with these ever so sexy bolts.

Dan
foxint@foxint.com.au

_________________
OWC Watch Company
ORANGE, NSW.
(formally Orange Watch Company)


Sun Jul 11, 2010 2:37 pm
Profile
VIP Member
User avatar

Joined: Sun May 09, 2010 8:11 am
Posts: 1728
Location: Montreal
Country: Canada (ca)
Post Re: One of a kind (for now) what do you think? MODEM BURNER
foxint wrote:
I have been dreaming of Allen keyed bolts and there you are - I am assuming you just tapped them into the metal. Where do you get these tiny bolts (and key) (aside from having to buy a zilion from the Chinese). I want to replace my back with these ever so sexy bolts.


Yes I did just tap them in the case easy enough just keep it strait, lubed and don't rush it is all of course you need the right tap spiral flute in this case because all the holes are blind, the screws are purchased at a few places one that comes to mind is McMaster Carr.
Thanks Dan

Dan
foxint@foxint.com.au


Sun Jul 11, 2010 3:15 pm
Profile
VIP Member
User avatar

Joined: Sun May 09, 2010 8:11 am
Posts: 1728
Location: Montreal
Country: Canada (ca)
Post Re: One of a kind (for now) what do you think? MODEM BURNER
Matty74 wrote:
I love seeing people being creative, dude you are awesome & your Mrs is very pretty too.


Thanks on both counts Matty.

Marcus


Sun Jul 11, 2010 3:17 pm
Profile
Moderator
User avatar

Joined: Fri Apr 10, 2009 1:56 pm
Posts: 6745
Location: Hollywood
Country: United States (us)
Post Re: One of a kind (for now) what do you think? MODEM BURNER
X-treme wrote:
Notice there are no brand markings I didn’t put any on #1 and I purposely left them out of this post I’m not here to sell them I just want your opinion.


Just a reminder to everyone that this forum isn't WUS. Unlike a lot of others forums, we encourage self promotion here, so if you want to tell us about your brand, your pricing, etc., you're more than welcome to.

_________________

Spiral Breguet Elinvar 17 Rubis Fab. Suisse

Current::

TBD

Former:

Helson Sharkmaster
3646 Kampfschwimmer Type-E build w/ OEM dial
WatchMaster Kenzo 3646 Kampfschwimmer homage
Rolex Oyster Perpetual 6564
Lucawatch Landeron Polaris Compressor
PAM 6152 / 6154 homage
RXW SubProMarine Revolution
RXW ZeroMaster GMT
Sport Time Chronograph 1000
RetroChron SeaSerpent 1 61-55 Chronograph


Sun Jul 11, 2010 3:31 pm
Profile WWW
VIP Member
User avatar

Joined: Sun May 09, 2010 8:11 am
Posts: 1728
Location: Montreal
Country: Canada (ca)
Post Re: One of a kind (for now) what do you think? MODEM BURNER
Honest opinions:

Hixxy wrote:
I like the case. The style reminds me of some of the Enzo Mechana prototypes that were posted on Enzo's forum: http://www.enzomechana.com/em/forum/vie ... a&start=30

Wow thanks for turning me on to this guys work i really like what he does.

Hixxy wrote:
...but that's true for any bulky pieces with steep, clean edges. Your dial choice is much better, and I like your lugs design better than all of those except for the two with the Submariner style lugs.

The dial is off the shelf from Germany actually both are, thanks for the lug comment.

Hixxy wrote:
The back looks kind of plain with the hammered-finish 6497. What about either going with the higher decoration striped + blued screws version? Retail cost is only about $60 more. Either that, or perhaps add some sort of body line around the back?

I agree with you that for $60 more I could put the Côte de Genève movement they are much better looking.

Hixxy wrote:
If you're going to be offering any sort of DIY case-kit (vs. complete watches), I might suggest a larger internal diameter to allow builders the option to utilize the plethora of 41mm-43mm 8-day movements (and regular pocket watch movements for that matter) that are out there. Just a thought.

The plan is to just supply finished watches but there are other models in the works these pieces are being sourced out because I really don't have the time to make them this is more of a hobby then a job for me and as I said before my real job takes me out of the country most of the time. I do agree with you that there is a big lack of large diameter cases out there that can handle 12 size 16lll and above movements but is there really a market for them???

Thank you for your opinion Hixxy it's much appreciated as well as everybody here you guys a really on the forefront of this type of watch making and your opinions are not falling on deaf ears.
Also thank you Hixxy for making this forum available for guys like me.

Marcus


Sun Jul 11, 2010 3:33 pm
Profile
VIP Member
User avatar

Joined: Mon Jan 11, 2010 4:50 pm
Posts: 1000
Location: Lisboa, Portugal
Country: Portugal (pt)
Post Re: One of a kind (for now) what do you think? MODEM BURNER
Hixxy wrote:
X-treme wrote:
Notice there are no brand markings I didn’t put any on #1 and I purposely left them out of this post I’m not here to sell them I just want your opinion.


Just a reminder to everyone that this forum isn't WUS. Unlike a lot of others forums, we encourage self promotion here, so if you want to tell us about your brand, your pricing, etc., you're more than welcome to.


es yes, plz self promote you're self! especially those good looking buckles... :D

Are you selling them? Present or future? And in 26mm?

_________________
Looking for a Cortebert 616? PM I might be able to help!

Q25 & Q24 Plexis available here

In my watch box:
Esdee 3646 Cali case Swiss 6497
PAM Getat 1950 47mm
PAM Jackson 44mm PowerReserve MM139
MQJ Sterilized
Orange Alpha Ocean Planet
Blue Alpha Seamaster
Blue Parnis Portuguese
GEN Zeno-Watch-Bazel Airplane Diver quartz :/

IN THE DRAWING BOARD:
A6152/1 w/ SF240
A6154 w/ Hami 699
Bronze A6154 Rolex dial w/?
A3646 w/ Swiss 6498
2533 w/ Swiss 6497
6152/1 w/ Hami 945
6152/1 w/ Molnija 3601


Sun Jul 11, 2010 3:58 pm
Profile
Watch Geek

Joined: Sat May 15, 2010 10:34 am
Posts: 327
Location: NYC
Post Re: One of a kind (for now) what do you think? MODEM BURNER
Marcus,

I'm chiming in a bit late to the party but have been watching this post with total awe and amazement -- and since this is NOT WUS, i'd just like to say that I think your creativity and subsequent watch you shared here is FUCKIN' AMAZING! Right on! Please keep us posted on future developments... :clap:

_________________
having a great time...


Mon Jul 19, 2010 10:20 pm
Profile
Display posts from previous:  Sort by
Reply to topic   [ 46 posts ]  Go to page 1, 2, 3  Next

Who is online

Users browsing this forum: Yahoo [Bot] and 17 guests


You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum

Jump to:



Powered by phpBB © 2000, 2002, 2005, 2007 phpBB Group • Designed by STSoftware for PTF • Advertisements by Advertisement Management
